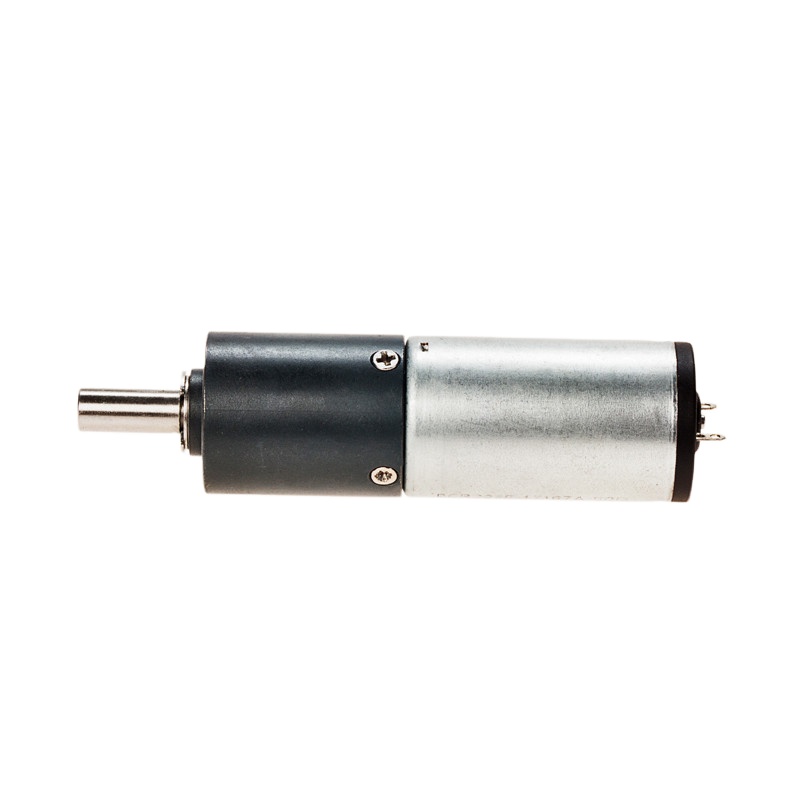

Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Output Power: 0.4W
Voltage(V): 12V DC
Efficiency: IE 1

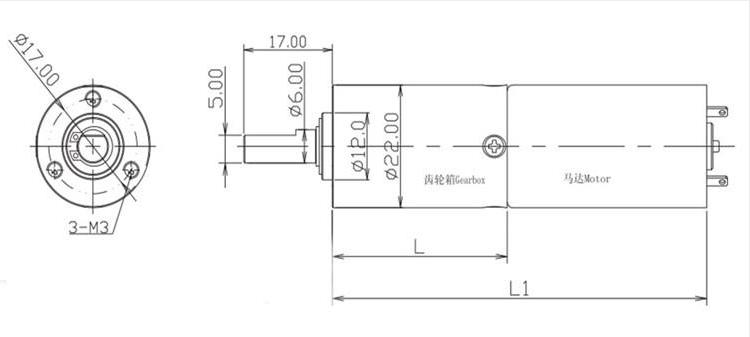

Motor dia.: 22mm
Gearbox dia.: 22mm

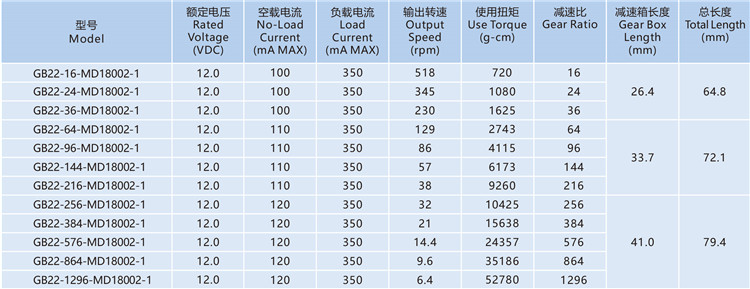

Gear ratio: 16-1296
Material: Plastic
OEM & ODM Service: Available
No Load Current: 100-120 MA
Rated Load Torque: 720-52780 gf.cm
Rated Current: 350 MA
Rated Load Speed: 6.4-518 rpm
Noise: <55 DB
Rotation: CW/CCW reversible
Customization: Accepted
Established in 2002, we are a leading gear transmission solution supplier. We provide a series of services to our respected customers from transmission schemes to finished products.

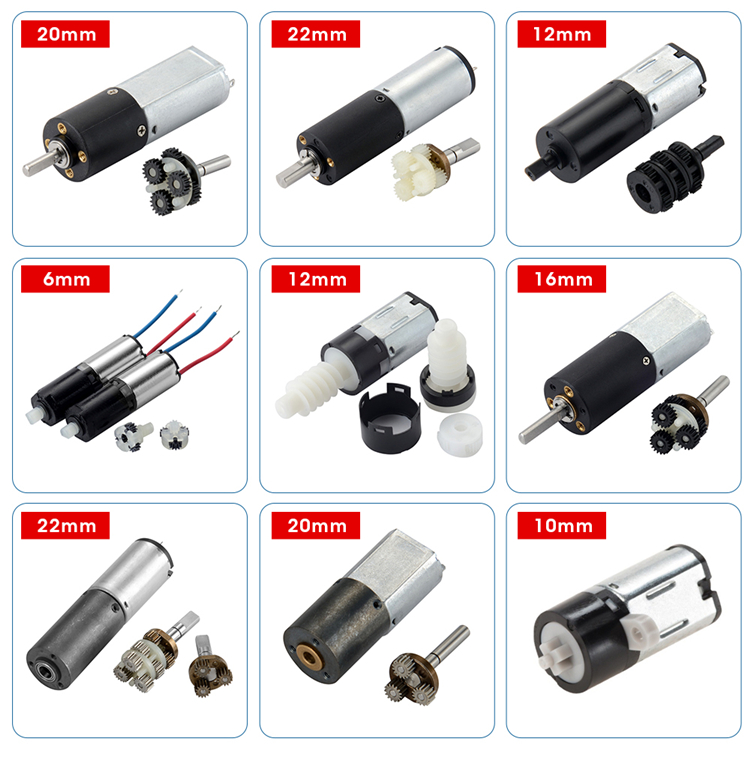

Main products include:
- DC Gear Motor
- Worm Gear Motor
- Planetary Gear Motor
- Plastic and Metal Gearboxes
- Precise Molds & Plastic Injection Parts
Customizing various gearboxes per requirement for our customers is our specialty.
We have obtained related certificates of ISO9001, ISO14001, and IATF16949 along with numerous patent certifications, ensuring high-standard production and quality control.
❓ Frequently Asked Questions
Q: What kind of gear reducer motors can you manufacture?
A: We can produce DC motors ranging from 3V to 36V, with power output under 40W and diameters less than 45mm.
Q: Can the gearbox be matched with other motors?
A: Yes, our standard gearboxes can be matched with brush, brushless, hollow cup, and stepping motors, provided they fit the gearbox shape. Custom proofing is recommended to ensure high efficiency and long life.
Q: Do you support customized gearbox development?
A: Absolutely. As a manufacturer with R&D capabilities, we can develop products based on your specific reduction ratio, output speed, and shape requirements.
Q: Can you provide samples for testing?
A: We can provide samples for testing. While sample fees may apply initially to ensure serious inquiries, these fees can often be refunded upon receipt of a formal bulk order.
Q: What is the typical delivery time for orders?
A: Standard gearboxes are generally delivered within 2 weeks. For customized products, confirmation samples are sent within 30-45 days, followed by a confirmed production date based on quantity.
Q: What shipping methods are used for samples and goods?
A: We work with global express companies like DHL, FedEx, and UPS. We also accept any transportation mode specifically requested by the customer.
